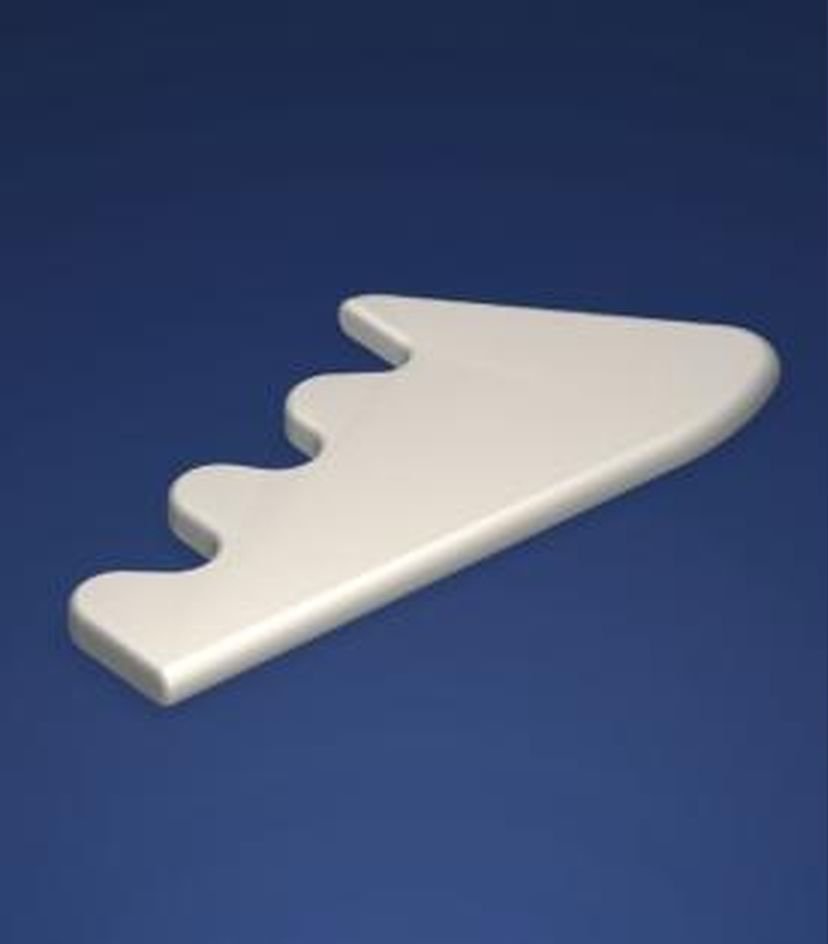

Wear-resistant 99.7% alumina profile guides with dimensional drawings, engineered for controlled geometry across defined yarn paths on winder positions.
Unlike a simple guide pin, a profiled guide's yarn-contact behaviour depends on its complete profile — thickness, edge radii and mounting position together. We match the complete profile, thickness, radii and mounting position against your existing part or drawing rather than a single headline dimension, since two guides can share an overall size but behave very differently under running tension if the profile edges differ.

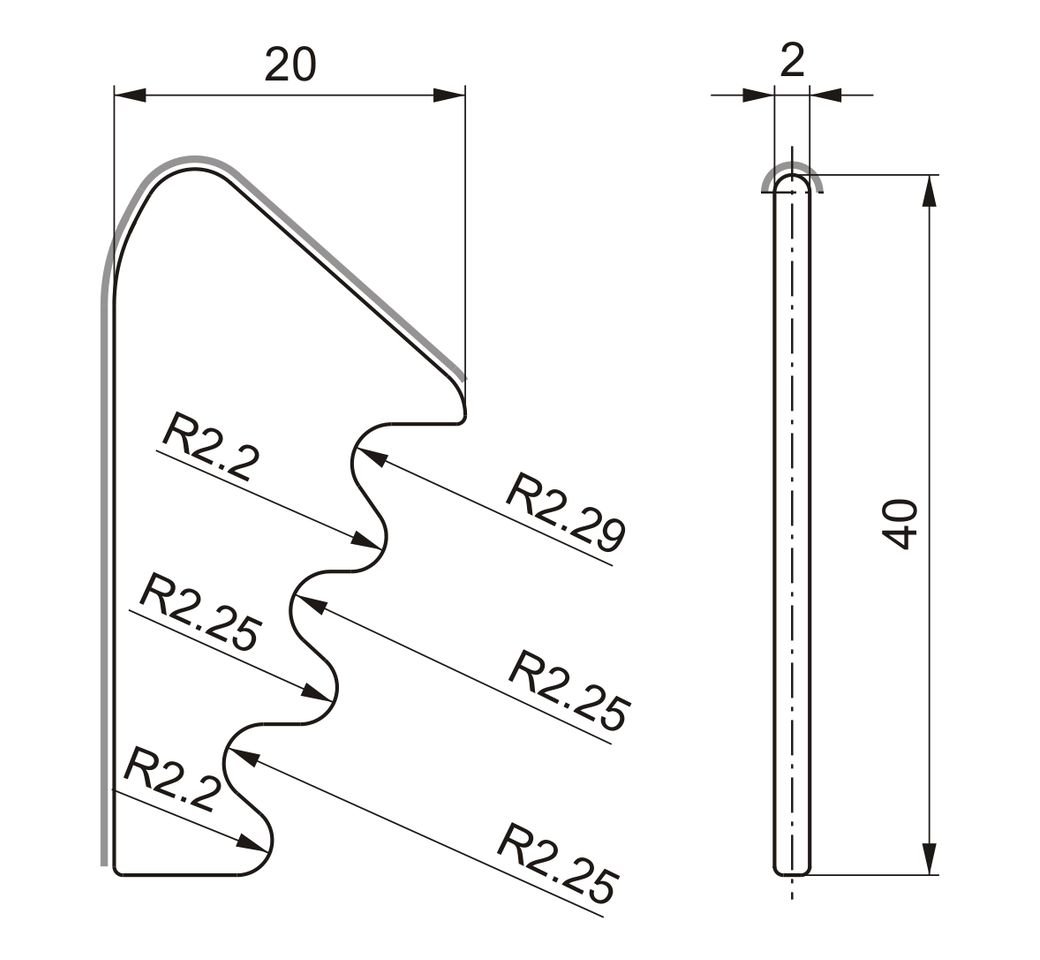

Dimensions in millimetres. Drawings not to scale — match the complete profile, thickness, radii and mounting position.
| JV Part No. | OEM / Barmag Ref. | Type | Size | Drawing |
|---|---|---|---|---|
| JV997-1280 | C239344 | Profile Guide | 20 × 40 × 2 |  |
| JV997-1315 | C239344 | Profile Guide | 20 × 40 × 2 | |
| JV997-1507 | — | Precision Ceramic Guide | Confirm on enquiry | — |
| JV997-1508 | — | Precision Ceramic Guide | Confirm on enquiry | — |
Both are profile guides referencing Barmag C239344 at 20 × 40 × 2mm, supplied as alternate part numbers for the same position — occasionally OEMs revise a reference without changing the physical part. Send your existing part or the exact reference on your machine and we'll confirm which applies.
A drawing gives the fastest, most reliable match. Where one isn't available, a physical sample or set of clear photographs showing the profile edge, mounting holes and overall dimensions is normally sufficient for our team to confirm a match.
Yes, subject to design review. Confirm the required thickness, radii and mounting pattern in your enquiry and we'll advise whether it's a direct match to an existing reference or requires custom manufacture.
